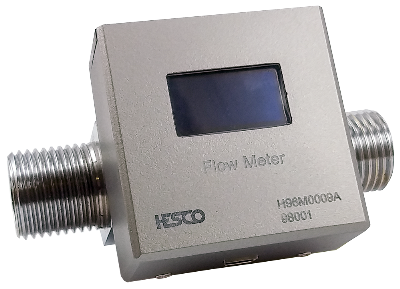

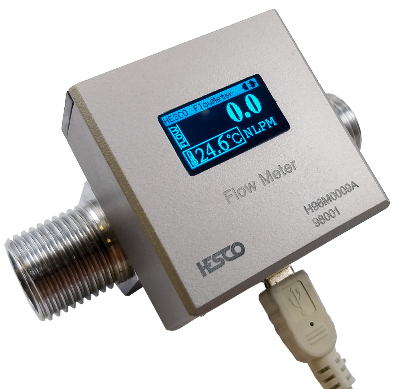

HESCO Flow Meter FLM5612

Highly Accurate Mass Flow Meter


فلومتر مدل

FLM5612





HESCO FLOW METER FLM5612



 Features:


 1.        Highly accurate mass flow sensing.

 2.        Automatic ambient temperature sensing.

 3.        High sensitivity for trace flow measurement.

 4.        Communication with Mini USB.

 5.        Fast response.




 Specifications:



 Value

 Unit

 Flow Rrange

 0-50

 NLPM

 Gas

 Air, N2

 -

 Turn-Down Ratio

 30:1

 %

 Accuracy

 ±(2.0+0.5FS)

 %

 Repeatability

 0.5

 %

 Response time

 ≤ 0.1

 Sec

 Power Supply

 TBR

 Vdc

 Display

 OLED

 -

 Working Temperature

 -10~55

 °C

 Storage temperature

 -20~65

 °C

 Max. Pressure

 ≤ 0.8

 MPa

 Pressure Loss

 ≤ 1000

 Pa

 Humidity

 <95

 %RH

 Calibration Gas

 N2 @ 25°C,101.325 kPa

 -

 User Interface

RS485

 PC Special Software


 Mechanical Connection

 NPT 1/2”


 Weight

 290

 g



HESCO FLOW METER FLM5612


 Dimensions:
